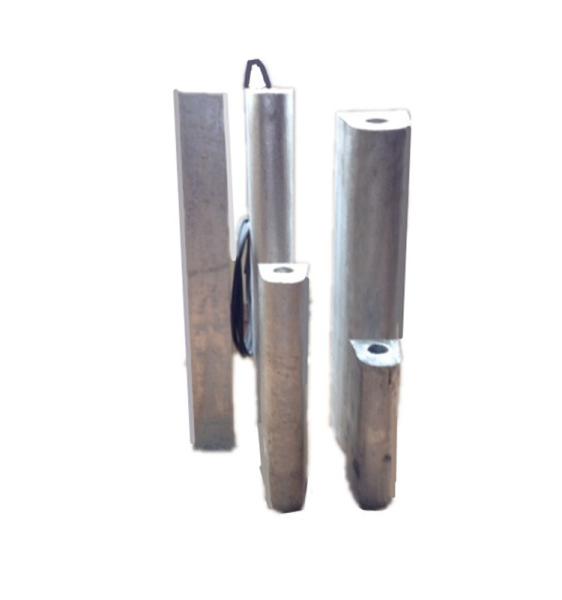

HP Sacrificial Magnesium Anodes For Soil

Name: HP Sacrificial Magnesium Anodes For Soil
Brand: High Broad / OEM
Price: 1 USD

China HP Sacrificial Magnesium Anodes For Soil wholesale

Brand Name : High Broad / OEM

Model Number : High potention Sacrificial Magnesium Anodes for cathodic protection

Certification : ISO, DNV,GB 4948 , ASTM Sacrificial Magnesium Anodes

Place of Origin : China

MOQ : 10 Kilograms

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 5000 Metric Ton/Metric Tons per year

Delivery Time : 1 FCL:14 Days

Packaging Details : On pallet with steel bundles

Cathodic protection : Anti-Corrosion,Offshore Project, bridge,anti corrosion

Marine anode : Zinc anode for boat

Anode Name : Hi potention Magnesium anode az63 for cathodic protection

ASTM Magnesium Anode : High potention sacrificial cast magnesium anodes

Product technology : Casting Magnesium Anode for Cathodic Protection

ASTM magnesium soil anode : Magnesium Anode az63 used in soil environment

Category : Sacrificial S type Magnesium Anode for Corrosion Control

Advantage : AZ63/MgMn High potention Mg anode

C type cast magnesium anodes : Corrosion control C type magnesium alloy sacrificial anode

soil mg anode : hipotential magnesium anode for soil

Other anode : Aluminum Anode for ship

Contact Now

Cast sacrificial magnesium anode

Dimensions

C Type	Type	Diameter (mm)	Weight	High Potential L(mm)	AZ63 anode L(mm)
	C25	75	2.56	336	325
	C36	114	3.70	202	193
	C41	114	4.20	230	220
	C77	110	7.80	431	412
	C100	110	10.20	560	536
	C145	146	14.70	494	472
	C227	178	22.90	520	497
	C274	114	28.20	1528	1462

D Type	Type	Weight(Kg)	Specification
	Type	Weight(Kg)	W(mm)	H(mm)	L(mm)
	9D2	4.082	69.90	76.20	549.30
	14D2	6.350	69.90	76.20	850.90
	20D2	9.072	69.90	76.20	1212.90
	9D3	4.082	88.90	95.30	352.40
	17D3	7.711	88.90	95.30	641.40
	32D5	14.515	139.70	146.10	504.80
	48D5	21.772	139.70	146.10	765.20
	1.5kg	1.50	80.00	70.00	190.00
	2.5kg	2.50	80.00	70.00	300.00

S Type	Type	Weight	Specification
	Type	Weight	W(mm)	H(mm)	L(mm)
	3S3	1.4	76.20	76.20	114.30
	5S3	2.5	76.20	76.20	190.50
	9S2	4.1	50.80	50.80	685.80
	9S3	4.1	76.20	76.20	342.90
	17S2	7.7	50.80	50.80	1295.40
	17S3	7.7	76.20	76.20	647.70
	20S2	9.1	50.80	50.80	1524.00
	32S3	14.5	76.20	76.20	1143.00
	32S5	14.5	127.00	127.00	533.40
	40S3	18.1	76.20	76.00	1524.00
	48S5	21.8	127.00	127.00	787.40
	60S4	27.2	101.60	127.00	1524.00

High Broad Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protectionof such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.

Specifications:

Chemical Composition

Type	Alloy Element				lmpurity Elements(Max)
	Al	Zn	Mn	Mg	Fe	Cu	Ni	Si	Other
	Al	Zn	Mn	Mg	Fe	Cu	Ni	Si	Each	Total
MGAZ63B	5.3-6.7	2.5-3.5	0.15-0.60	Balance	0.003	0.01	0.001	0.08	_	0.30
MGAZ31B	2.7-3.5	0.6-1.4	0.2-1.0	Balance	0.003	0.01	0.001	0.08	0.05	0.30
MGM1C	<0.01	_	0.5-1.3	Balance	0.01	0.01	0.001	0.05	0.05	0.30

Electrochemical Performance

Type	Open-Circuit -V(vs Cu/CuSO4)	Current Efficiency %(vs Cu/CuSO4)	Generating Current (A.h)/kg(vs Cu/CuSO4)
MGAZ63B	1.57-1.67	>=55	>= 1210
MGAZ31B	1.57-1.67	>= 55	>= 1210
MGM1C	1.77-1.82	>= 50	>= 1100

HP Sacrificial Magnesium Anodes For Soil

Application:

1) -for above ground storage tank bottoms

2) -for reinforced concrete structures

3) - for under ground storge tank

4) - for fine sand environment

5) - for environment evolution of O2,Cl2 or a combination of both

6) - other by custom design size and dimension

High potention sacrificial cast magnesium anodes

HP Sacrificial Magnesium Anodes For Soil
